One More EPYC: AMD Launches Entry-Level Zen 4-based EPYC 4004 Series

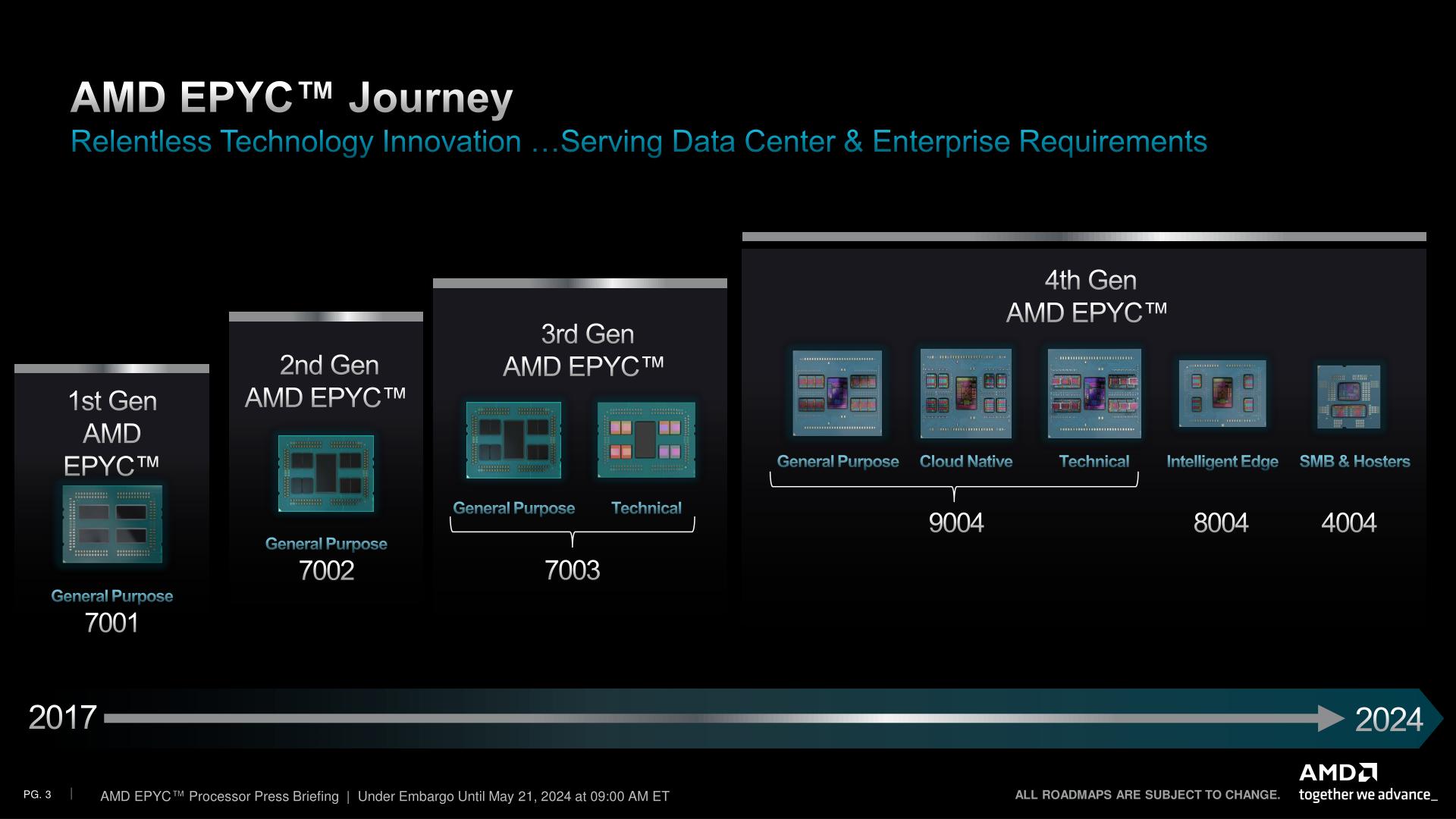

Ever since AMD re-emerged as a major competitor within the x86 CPU scene, one of AMD’s top priorities has been to win over customers in the highly lucrative and profitable server market. It’s a strategy that’s paid off well for AMD, as while they’re still the minority player in the space, they’ve continued to whittle away at what was once Intel’s absolute control over the market, slowly converting more and more customers over to the EPYC ecosystem.

Now as the Zen 4 CPU architecture approaches its second birthday, AMD is launching one final line of EPYC chips, taking aim at yet another Xeon market segment. This time it’s all about the entry-level 1P server market – small scale, budget-conscientious users who only need a handful of CPU cores – which AMD is addressing with their new EPYC 4004 series processors.

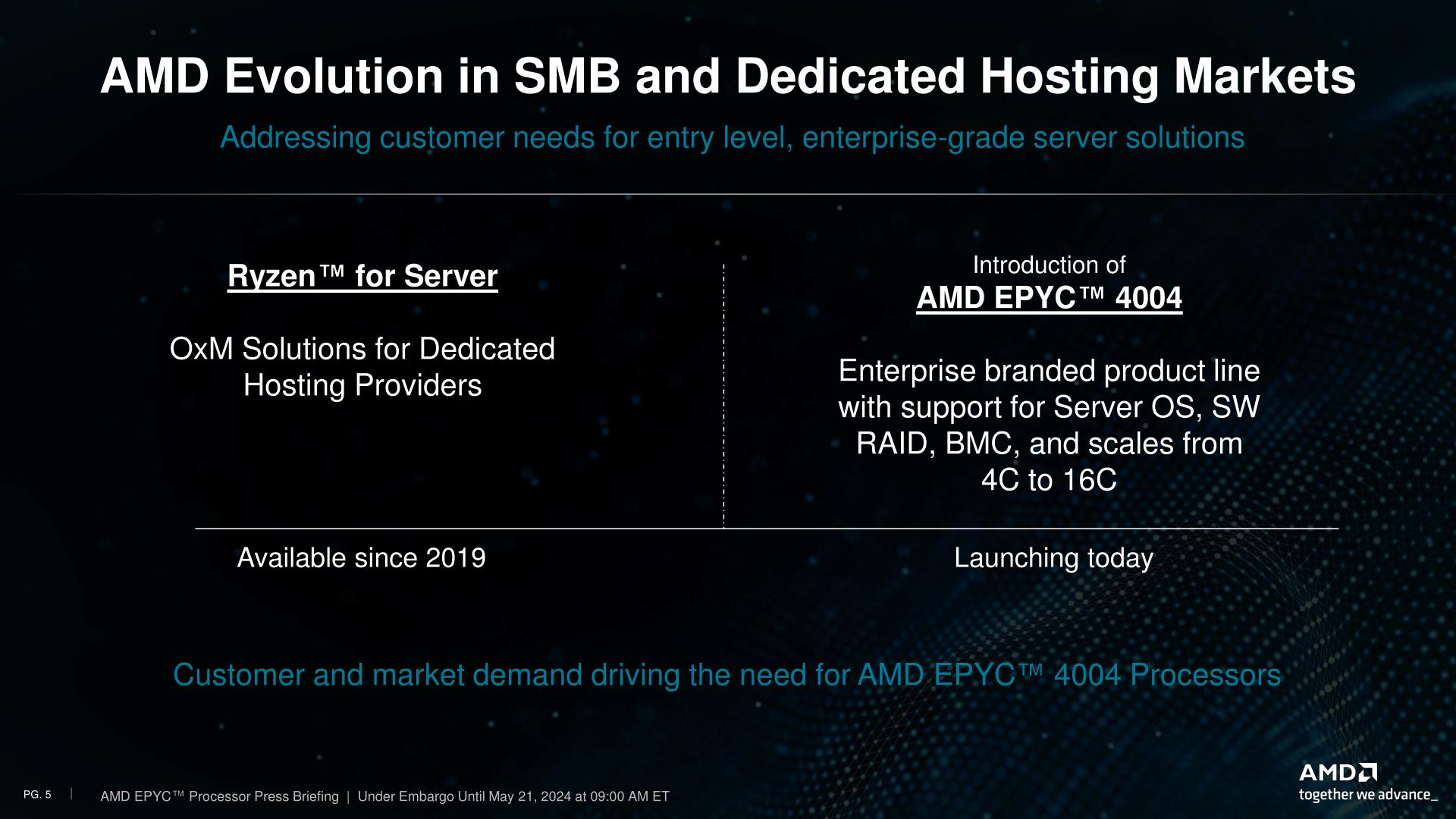

Within AMD’s various product stacks, the new EPYC 4004 family essentially replaces Ryzen chips for use in servers. Ryzen for servers was never a dedicated product lineup within AMD, but none the less it has been a product segment within the company since 2019, with AMD aiming it at smaller-scale hosting providers who opted to use racks of consumer-scale hardware, rather than going the high-density route with high core count EPYC processors.

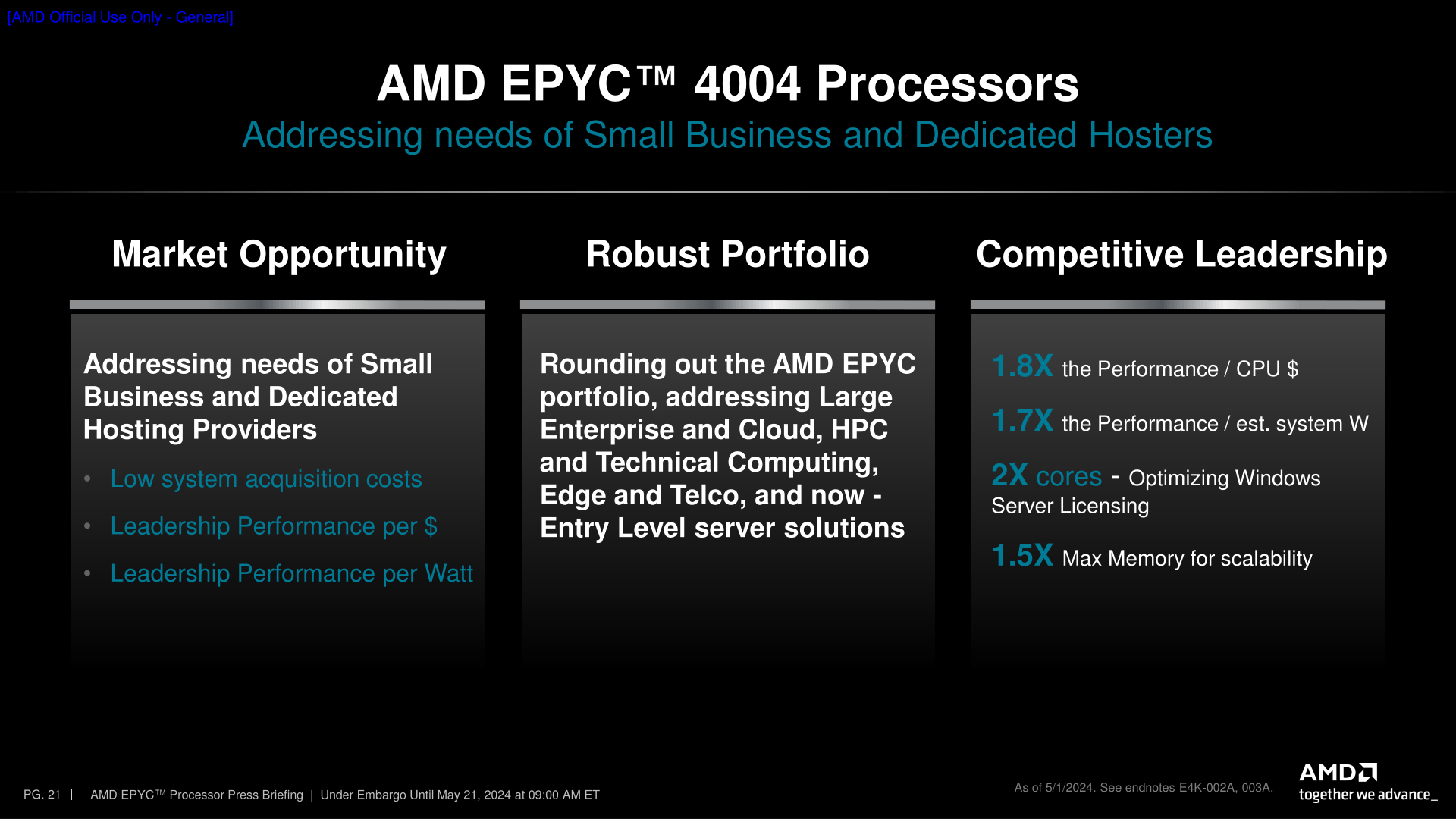

With the upgrade to EPYC status, that hardware ecosystem is being re-deployed as a proper lineup with dedicated chips, and a handful of additional features befitting an EPYC chip. Consequently, AMD is also expanding the scope of the market segments they’re targeting by a hair, roping in small business (SMB) users, whom AMD wasn’t previously chasing. Though regardless of the name on the market segment, the end result is that AMD is carving out a budget-priced series of EPYC chips with 4 to 16 cores based on their consumer platforms.

Underlying the new EPYC 4004 series is AMD’s tried and true AM5 platform and Raphael processors, which we know better as the Ryzen 7000 series. Their new EPYC counterparts are an 8 chip stack that is comprised almost entirely of rebranded Ryzen 7000 SKUs, with all the same core counts, clockspeeds, and TDPs as their counterparts. The sole exception here being the very cheapest chip of the bunch, the 4 core 4124P.

AMD EPYC 4004 Processors
AnandTech	Core/ Thread		Base Freq	1T Freq	L3 Cache	PCIe	Memory	TDP (W)	Price (1KU)	Ryzen Version
4584PX	16	32	4200	5700	128MB (3D)	28 x 5.0	2 x DDR5-5200 UDIMM	120	$699	7950X3D
4484PX	12	24	4400	5600	128MB (3D)			120	$599	7900X3D
4564P	16	32	4500	5700	64MB			170	$699	7950X
4464P	12	24	3700	5400	64MB			65	$429	7900
4364P	8	16	4500	5400	32MB			105	$399	7700X
4344P	8	16	3800	5300	32MB			65	$329	7700
4244P	6	12	3800	5100	32MB			65	$229	7600
4124P	4	8	3800	5100	16MB			65	$149	New

Since these are all based on AMD’s consumer discrete CPUs, the underlying architecture in all of these chips is Zen 4 throughout. So despite being positioned below the EPYC 8004 Siena series, you won’t find any Zen 4c CPU cores here; everything is full-fat Zen 4 CCDs. Which means that while there are relatively few cores overall (for an EPYC processor), they are all high-performing cores, with nothing turboing lower than 5.1GHz.

Notably here, AMD is mixing in some of their 3D V-Cache chip SKUs as well, which are signified with the “PX” suffix. Based on the 7950X3D and 7900X3D respectively, both of these chips have 1 CCD with V-Cache stacked on top of them, affording the chip a total of 128MB of L3 cache. The remaining 6 SKUs all get the “P” suffix – indicating they’re 1 socket processors – and come with TDPs ranging from 65 Watts to 170 Watts.

This does mean that, by EPYC server standards, the 4004 series is not particularly energy efficient. This is a lineup that is intended to be cost-effective first and foremost. Instead, energy efficiency remains the domain of the EPYC 8004, with its modestly-clocked many-core Zen4c designs.

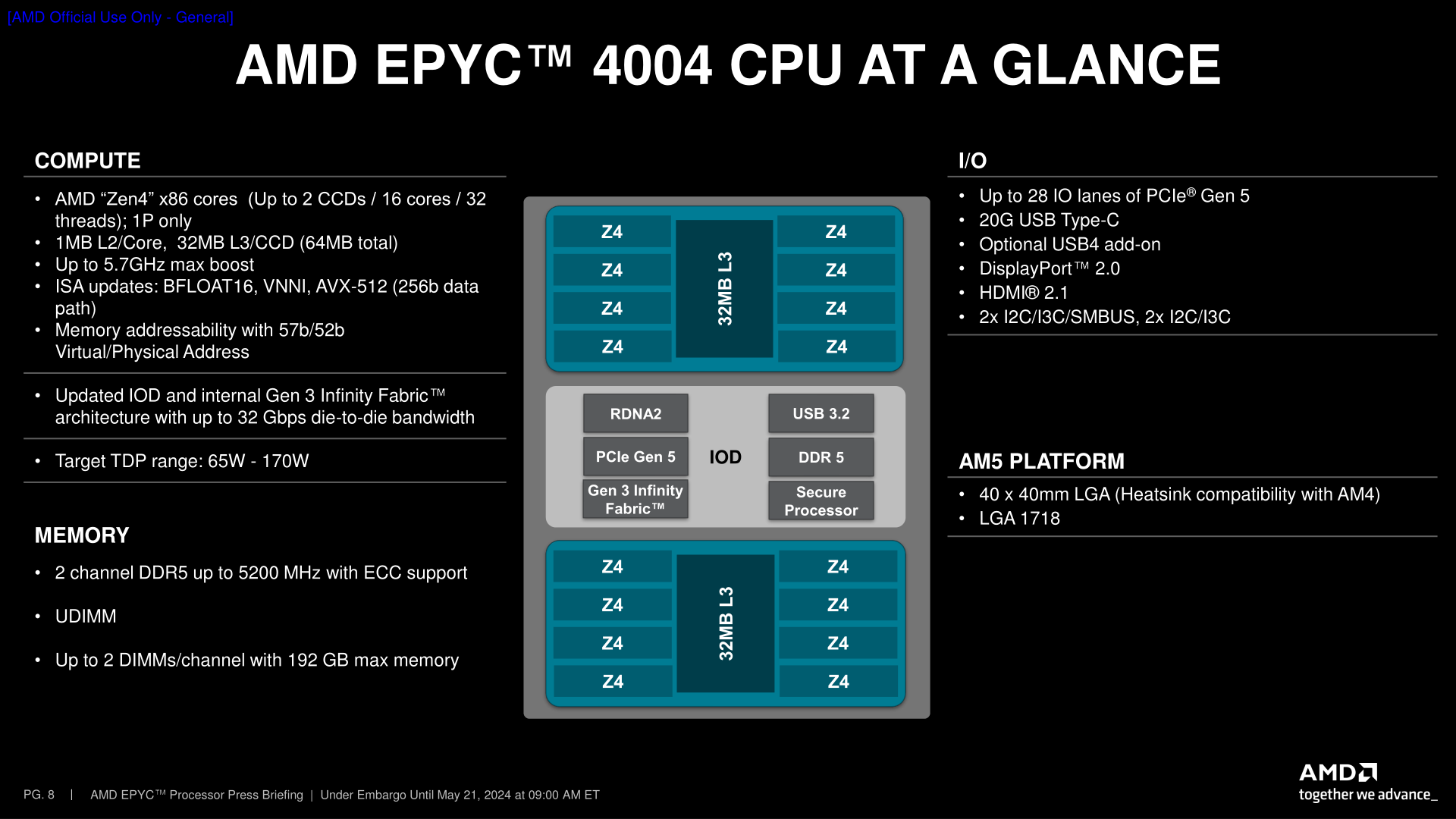

The reuse of Zen 4/AM5 means that the EPYC 4004 series comes with all of the features we’ve come to expect from the platform, including 28 lanes of PCIe 5.0, 2 channels (128-bits) of DDR5 memory at speeds up to DDR5-5200, and even integrated graphics. Since this is a server part, ECC is officially supported on the chips – though do note that like the Ryzen Pro workstation chips, this is UDIMM-only; registered DIMMs (RDIMMs) are not supported.

AMD isn’t disclosing the chipset being paired with the EPYC 4004 processors, and while it’s undoubtedly going to be AMD’s favorite ASMedia-designed I/O chipset, it’s interesting to note that it’s at the motherboard level where the new EPYC platform’s real server credentials are at. Separating itself from rank-and-file Ryzens, the EPYC 4004 platform is getting several additional enterprise features, including baseboard management controller (BMC) support, software RAID (RAIDXpert2 for Server), and official server OS support. To be sure, this is still a fraction of the features found in a high-end enterprise solution like the EPYC 9004/8004 series, but it’s some additional functionality befitting of a platform meant to be used in servers.

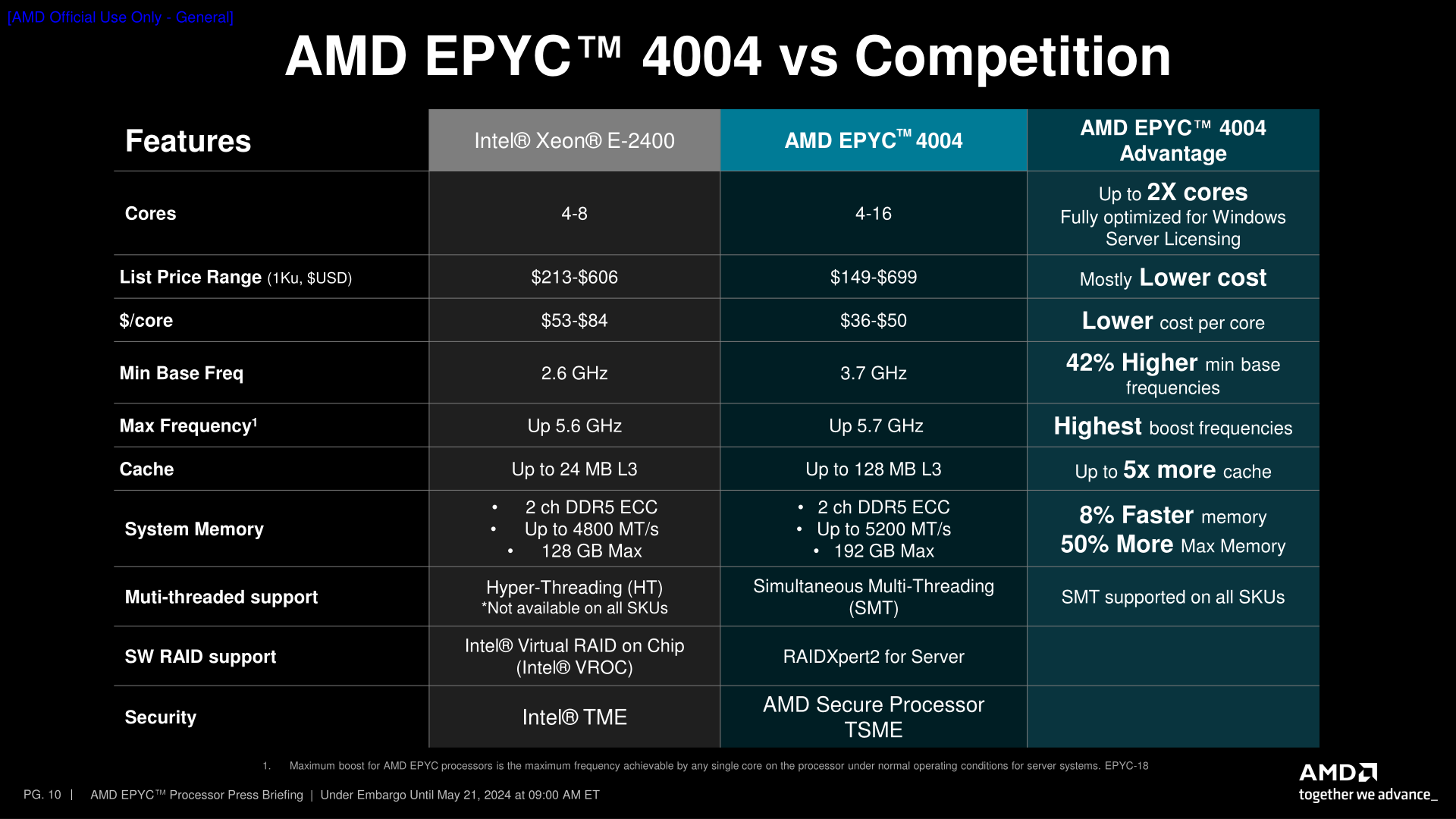

AMD’s new chips, in turn, are designed to compete against Intel’s entry-level Xeon-E family. Itself a redress of consumer hardware (Raptor Lake), the Xeon-E family is a P-core only chip lineup, with Intel offering SKUs with 4, 6, or 8 CPU cores. This leaves the EPYC 4004 family somewhat uniquely positioned compared to the Xeon-E family, as Intel doesn’t have anything that’s a true counterpart to AMD’s 12 and 16 core chips; after Xeon-E comes the far more capable (and expensive) Xeon-w family. So part of AMD’s strategy with the EPYC 4004 family is to serve a niche that Intel does not.

(As a side bonus, AMD’s core counts also end up playing well with Windows Server 2022 licensing. The Standard license covers up to 16 cores, so a top-end EPYC 4004 chip lets server owners max out their license, amortizing the software cost over more cores)

With regards to performance, Raptor Lake versus Zen 4 is largely settled by now. So I won’t spend too much time on AMD’s (many) benchmark slides. But suffice it to say, with a significant core count advantage, AMD can deliver an equally significant performance advantage in highly multi-threaded workloads (though in that scenario, it does come with a similar spike in power consumption compared to the 95 Watt Intel chips).

Wrapping things up, AMD is launching the new EPYC 4004 product stack immediately. With many of AMD’s regular server partners already signed up – and the core hardware readily available – there won’t be much of a ramp-up period to speak of.
