Netgear Launches CM1000 DOCSIS 3.1 Cable Modem, New Switches at CES 2017
  • Comments are Closed

Netgear Launches CM1000 DOCSIS 3.1 Cable Modem, New Switches at CES 2017

Netgear became one of the first vendors to bring a DOCSIS 3.1 cable modem to the market last month with the availability of the CM1000. It is based on the Broadcom BCM3390 cable modem SoC announced at CES 2015.

DOCSIS 3.1 is one of the most awaited developments in the cable modem industry, allowing ISPs to provide consumers with gigabit and higher speeds without altering existing infrastructure. The specifications support speeds up to 10 Gbps, but, the first generation chipsets like the BCM3390 support only speeds up to 6 Gbps. Compared to the 6- and 8 MHz-wide channels in DOCSIS 3.0, DOCSIS 3.1 uses 20-50 kHz-wide OFDM subcarriers. These can be bonded together in 200 MHz-wide blocks. Note that DOCSIS 3.1 is still not symmetric – while download speeds can go as high as 10 Gbps, upstream rates have a 1 Gbps ceiling.

The CM1000 supports 32 downstream and 8 upstream SC-QAM channels for theoretical downlink speeds of 6 Gbps. Its Ethernet port is still 1 Gbps, and doesn’t take full advantage of the capabilities of the BCM3390.

This CableLabs-certified modem is supported by Xfinity, Cox and Time Warner in the US market. It is also backwards-compatible with existing DOCSIS 3.0 networks. Customer experience with the modem is heavily reliant on the equipment being used by the ISP in the area, with many early adopters reporting activation issues. The firmware on the latest units supposedly fixes these problems. If one wants the latest and greatest in cable modem technology, or, is interested in the gigabit-tier services from the cable ISPs, the Netgear CM1000 ($180) looks like the only choice in the retail market right now.

In related news, Netgear is also launching the C7100v – the Nighthawk AC1900 Wi-Fi Cable Modem Router with voice capabilities. It is based on a Broadcom platform, and has a 24×8 modem (up to 960 Mbps downstream speeds) along with a 3×3 802.11ac router (similar to the Nighthawk R7000, but, with a 1.6 GHz SoC). There are two integrated voice lines that get automatic priority over data. The device is meant for the retail market, and will have a MSRP of $300 at launch later this year.

On the switch front, we have the Nighthawk S8000 8-port gaming and media switch (GS808E) meant for prosumers in the home environment with Layer 2 switching and web management (Plus) capabilities. The industrial design shows the Nighthawk branding clearly. It handles appropriate QoS settings for traffic from games and media streaming services such as Netflix. There is a web-based GUI appropriate for the target market, with pre-configured settings available for each port. The switch also allows teaming of up to four ports with dynamic link aggregation. This 8-port switch is expected to become available towards the end of this quarter for $100.

Netgear is also expanding its PoE switch offerings. The ‘mount-anywhere’ web-managed (Plus) switches became hugely popular after their introduction last year. As part of the CES product launches, Netgear is adding the GSS108EPP and GS408EPP with 8 Gigabit ports each. The GSS108EPP comes in the Click format and has four PoE+ ports (total 47W), while the GS408EPP comes in a easy-mount form factor (such that two switches can be placed back to back in a 1U rack slot) and has 8 PoE+ ports (seven active at a time, with one used for uplink) with a 124W power budget. Both are web-managed Plus switches with L2 management capabilities. One of the innovative features is the ability to configure the power budget for each port. The GSS108EPP is passively cooled. It will have a MSRP of $150, while the GS408EPP will have a MSRP of $270.

FLIR One Thermal Imager Gets an Update, New Infrared Cameras with Lepton Inbound
  • Comments are Closed

FLIR One Thermal Imager Gets an Update, New Infrared Cameras with Lepton Inbound

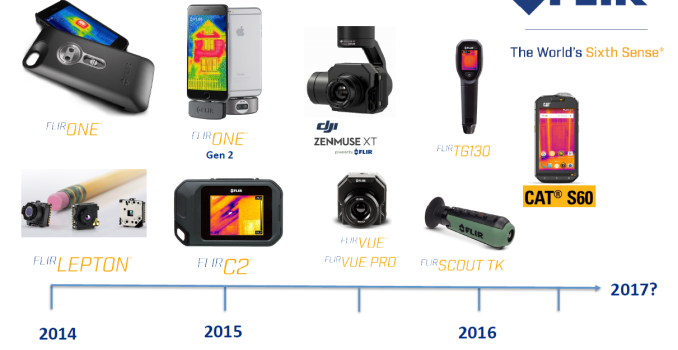

Over the last couple of years, thermal imaging has become more accessible to the average consumer due to development of low-cost infrared sensors / microbolometers. FLIR was one of the first to make a breakthrough in this segment with the low-cost Lepton sensor. The first version with a resolution of 80×60  was introduced to the market in the FLIR One Thermal Imager for iPhone 5/5s. After a year, FLIR added a 160×120 version to the Lepton portfolio, and also used it in the second-generation FLIR One Thermal Imager (separate versions for Android and iOS). The first-generation Lepton sensor also found a place in the CAT S60 rugged smartphone.

At CES 2017, FLIR is launching five different infrared cameras, all of which are based on sensors belonging to the Lepton family. The five cameras fall into three categories:

  • FLIR One family : The third generation FLIR One and FLIR One Pro for Android and iOS
  • FLIR Duo and Duo R : Thermal and visible camera combo in a GoPro form-factor, suitable for mounting on drones
  • FLIR C3 : Rugged and pocket-sized touchscreen thermal camera for professionals.

The FLIR One and FLIR One Pro are meant to be used in conjunction with a smartphone. They come in two variants – one for iOS (with a Lightning connector), and the other for Android (with a USB Type-C connector). While the FLIR One is meant for the casual user / first-time thermal camera owner, the Pro version is meant for professional use-cases. Both of them feature an adjustable connector to ensure a snug fit against any compatible smartphoe model with or without an installed protective case. The following comparison table brings out the differences between the FLIR One Gen 3 and FLIR One Pro.

The FLIR One Gen 3 and FLIR One Pro are available for pre-order today for $199 and $399 respectively.

The FLIR Duo and Duo R  are meant for use with drones. Both of them use the 160×120 resolution Lepton sensor. The availability of a HD video camera in the units ensure that MSX is available (FLIR’s proprietary blending of live images with thermal ones to provide more actionable results to the end user). There is a microSD card slot on the cameras, as well as mini-USB and micro-HDMI outputs. Real-time remote control of the camera operations is also possible with a smartphone app communicating over Bluetooth. The camera also integrates with MAVLink-compatible flight controllers.

The Duo R includes radiometry – i.e, the thermal sensor is calibrated to provide more accurate temperature readings (a tolerance of +/-2%, as compared to more than +/-5% with the non-radiometry version). The Duo has a MSRP of $999, while the Duo R retails for $1299. Both models are available for purchase today.

The FLIR C3 is a standalone product meant for professional use-cases where ruggedness is important (such as home inspections and building maintenance). In that respect, it is somewhat similar to the FLIR One Pro smartphone accessory. However, unlike the FLIR One Pro, this is a completely standalone device with its own Wi-Fi radio, 3″ touchscreen, and firmware running completely on the processor / microcontroller inside it. Curiously enough, despite the FLIR C3’s use of the first-generation Lepton sensor (80×60), it offers full radiometry for a more accurate analysis with FLIR Tools offline. However, it only supports scene temperature range of -10C to 150C, while the FLIR One Pro does -20C to 450C. On the other hand, the thermal sensitivity in the C3 is greater (allowing for detection of subtle temperature variations).

FLIR indicated that these differences could be attributed to the ability to offload some of the processing tasks in the FLIR One Pro to the mobile phone’s app processor. The FLIR C3 is slated to become available later this quarter for $699.

It is great to see an increase in the number of thermal cameras using the Lepton sensors. Even though export restrictions put a limit on the video frame rate of these sensors at 9 Hz, it is  not an issue for the use-cases that these cameras target.

FLIR’s competition for these cameras comes in the form of Seek Thermal’s $500 CompactPRO (going directly against the FLIR One Pro) and the $700 RevealPRO (going directly against the FLIR C3). FLIR does have the MSX advantage and undercuts the CompactPRO’s price point by $100 for the FLIR One Pro. The FLIR One Pro also comes with the more future-proof USB-C port (though the Seek Thermal’s micro-USB port can easily be used with an appropriate USB-C adapter). However, Seek Thermal uses a 320×240 resolution thermal sensor in both of the above products, which is 2-4x more than what the Leptons offer. Additionally, the Seek Thermal units have been shipping for a few months now.

The past couple of years in the thermal imaging market have been quite interesting. It looks likely to continue in the near future with the array of products being brought to the market by FLIR and Seek Thermal.
