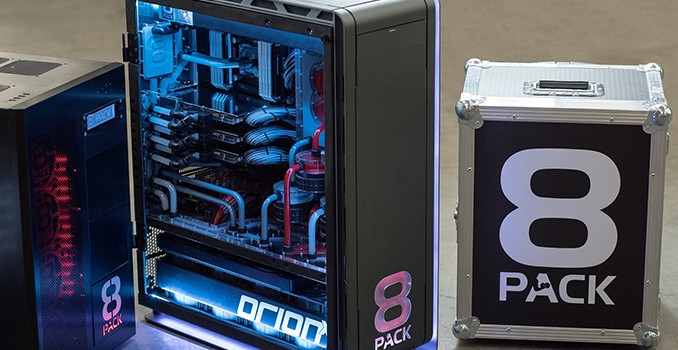

The OcUK 8Pack OrionX: X99 + Z270 in a Custom Overclocked $30,000 Desktop PC

Overclockers UK has started to offer its top-of-the-range 8Pack OrionX computer that weds two completely different systems in one box: a multi-core overclocked Intel Core i7-6950X-based high-end desktop and a quad-core factory overclocked Intel Core i7-7700K-based gaming rig. The 8Pack OrionX was designed by former world #1 overclocker Ian Parry (aka 8Pack, we interviewed him 2013) for those who want to have the absolutely best performance in all applications and who can pay for such system. The limited edition rig is now available from OcUK for £24,000 ($30,116).

Dual Systems

Different types of workloads can benefit from different microprocessor architectures and even different CPU configurations. There are a number of workloads that scale well with an increase cores and there are applications that take advantage of high frequencies, IPC included. In a perfect world, one could dedicate hardware to multi-core or high-frequency as required. In fact, back at CeBIT 2005, ECS demonstrated taking this concept to pure crazy: its PF88 motherboard supported both AMD’s Athlon 64 and Intel’s Pentium 4 processors and allowing users to take advantage of both microarchitectures. The processors used the same graphics card and the same operating system, which optimized the cost of the setup and offered somewhat consistent user experience. But while the concept was interesting, there were multiple factors (apart from the cost of two processors) that prevented it from taking off even in the enthusiast space: switching between CPUs required opening up the system and changing jumper settings manually; it was impossible to install proper coolers on CPUs because they were located nearby each other; ECS had to use SiS chipsets that were not popular among the target audience at the time.

Today, Intel offers two completely different desktop platforms targeting different performance and power targets as well as different applications and pricing. The mainstream/gaming platform is based on CPUs with two or four cores running at rather high frequencies and the majority of games are tailored for 4C/8T processors because that is what most gamers use. This platform typically also uses the latest microarchitecture and supports the latest technologies. Meanwhile, Intel’s high-end desktop platform is powered by CPUs with up to ten cores featuring a previous-generation microarchitecture with certain enhancements but lags a bit behind the latest technologies that Intel has to offer in terms of chipset. The HEDT platform can offer plenty of horsepower for professional applications tailored for multi-core CPUs, but due to relatively low frequencies of such chips, they not always deliver the highest performance in all games. All-in-all, ideally you are going to need different Intel CPUs for different tasks and this is exactly why Overclockers UK are offering the 8Pack OrionX. At a premium.

Conceptually, the 8Pack OrionX resembles the aforementioned platform from ECS, but rather than putting two CPUs on one board with a jumper, it simply squeezes two premium factory overclocked systems featuring high-end components available in one large case.

Chassis and Cooling

When we talk about PCs, we usually start with CPUs and GPUs because they define general capabilities of almost any platform. However, when we discuss a system with two CPUs, four or five GPUs and five SSDs, it makes more sense to start with the chassis and cooling.

The 8Pack OrionX PC comes in the Phanteks Enthoo Elite chassis that was developed to build 2-in-1 desktop PCs featuring an ATX motherboard and a Mini-ITX motherboard. Phanteks calls its chassis “the extreme full tower” because this 123-liter giant is 75 cm tall (29.5”) and can fit in 13 3.5” drives, six 2.5” drives, a standard PSU of virtually any length (the 8Pack OrionX uses the Super Flower Leadex 2 kW PSU) and virtually any cooling system.

For cooling, the 8Pack OrionX uses a custom-built triple-loop cooling system with EK Supremacy Evo CPU water blocks, insane tubing and pass-through plates made of polished acryl. This involves custom reservoirs, as seen above, installed along the rear, front, and mid-plate panels of the case. The LCS has four pumps that are dynamically controlled. OcUK does not reveal too many details about the cooling system, but we suspect that one loop is dedicated to the Intel Core i7-6950X CPU, another is used to cool down three primary graphics adapters and the primary SSD of the X99 platform, whereas the third one is dedicated to the secondary system running the Intel Core i7-7700K and the NVIDIA TITAN X video card. In the past OcUK likes to offer Mayhem coolants, known for their striking color, although this isn’t specifically mentioned.

Since the LCS is extremely large and uses two massive radiators located on top and bottom of the chassis, the expansion capabilities of the Phanteks Enthoo Elite will be limited to the owners of the 8Pack OrionX (for example, it will be impossible to install a 5.25” ODD instead of front USB and audio ports), but this is a necessary tradeoff.

“Golden” CPUs and High-End Motherboards

Both CPUs are factory overclocked and Overclockers UK guarantees that the Intel Core i7-6950X will work at an AVX stable 4.40 GHz or higher frequency, whereas the Intel Core i7-7700K will work fine at 5.10 GHz or higher. Since overclocking potential of microprocessors vary, the manufacturer only advertises 4.4 and 5.1 GHz frequencies, but actual systems may run faster.

Overclockers UK chose ASUS’ Rampage V Edition 10 and ROG Strix Z270I Gaming motherboards for its 8Pack OrionX systems. Both mainboards feature high-quality VRMs to guarantee stable operation of overclocked CPUs, offer plenty of USB 3.0 and 3.1 ports, GbE, 802.11ac Wi-Fi, 7.1-channel audio sub-systems and so on. Meanwhile, since the system lacks ODD space, it will be impossible to install Rampage V’s additional front-panel SupremeFX Hi-Fi headphone audio sub-system (ESS ES9018K2M Sabre DAC, Cirrus Logic CS5361 AD converter, multiple amps) into the case, but maybe OcUK has an external solution for this add-on for those who want to have a high-end audio.

As for memory sub-systems, the manufacturer chose 8 GB Corsair Dominator Platinum DDR4 modules: eight of such DIMMs are installed into the X99 motherboard (making up for 64 GB) and two are used for the Z270 platform (making up for 16 GB).

Four NVIDIA TITAN X Cards in One Box

Since the 8Pack OrionX is designed a no-compromise system, it also uses the highest-performing graphics cards today: the NVIDIA TITAN X with 12 GB of GDDR5X memory. Moreover, an interesting thing is that NVIDIA does not advertise more than two TITAN X cards per system for gaming, however other non-gaming uses can take advantage. Three of the NVIDIA TITAN X cards are installed into the primary X99 motherboard and come with factory overclocked GPUs operating at 2 GHz. Meanwhile, the fourth one runs with the Z270 platform.

Keeping in mind that far not all games are compatible with the AFR rendering technique, even a dual-GPU sub-system is an overkill nowadays and NVIDIA officially does not support 3-way and 4-way GPU configurations for its GeForce GTX 10 (Pascal) family. Nonetheless, some may try to run older games at 4K resolution with FSAA and since some of those games support AFR, three GPUs might make sense. In any case, the overclocked TITAN X GPU can offer a very high level of performance in modern games even when working alone.

Meanwhile, many prosumers use GPU-accelerated applications and this is exactly where 10752 stream processors of three TITAN X GPUs will show their potential. In fact, specifically for people looking forward extreme FP32 performance, OcUK offers an option to install the fourth TITAN X into the X99 system.

The manufacturer mentions overclocking for the NVIDIA TITAN X card plugged into the Z270 motherboard, but does not specify exact GPU frequency here. In any case, this card inside the 8Pack OrionX will offer something more than the “regular” TITAN X.

Five SSDs and 20 TB of HDD Space

The storage sub-system of the 8Pack OrionX is reported as being tailored for the workloads of each platform. In total, the rig comes with 4.2 TB of solid-state storage and 20 TB of HDD storage space.

The X99 system is equipped with three layers of storage. The primary SSD of the X99 is the Intel 750 1.2 TB NVMe SSD that is based 20 nm MLC NAND flash memory and offers sequential read speed up to 2.5 GB/s as well as sequential write speed up to 1.2 GB/s. To ensure that the SSD does not throttle under high loads, it is liquid-cooled. The secondary SSD-based layer of the X99 system is comprised of two Samsung 850 Pro 1 TB SSDs working in RAID 0 and thus delivering up to 1.1 GB/s read performance. The final layer uses Seagate’s top-of-the-range helium-filled BarraCuda Pro 10 TB drive.

Being primarily aimed at gaming, the Z270 part of the 8Pack OrionX is equipped with a simpler (if this word is applicable to this rig at all) storage sub-system. The primary storage is based on two Samsung 960 Pro 512 GB SSDs running in RAID 0. Meanwhile, there is another Seagate BarraCuda Pro 10 TB attached to the Z270 motherboard to keep all the data that is not stored on the SSDs (or backup copies).

When it comes to bespoke PCs from boutique PC makers, the look is as important as performance because such systems have to be distinct from others. Without any doubts, the look of the 8Pack OrionX is different, mostly because of the complex LCS and lighting.

First, the Phanteks Enthoo Elite has its own RGB lighting on its right side and on the bottom. The lights can be customized from the front panel of the rig. Secondly, Overclockers UK offers a choice of different watercooling fittings and fluid colors. As it is shown in the pictures, different liquid colors may be used for different LCS loops. The SI also offers different PSU cable braiding to match the color scheme of a particular system. Finally, there are multiple RGB stripes installed inside the 8Pack OrionX and their color can be set by OcUK or by the owner using appropriate ASUS software.

The manufacturer does not keep the 8Pack OrionX in stock and each PC is built-to-order by OCUK and Ian Parry who then tunes each one to its own stable maximum. What the manufacturer advertises right now is the base model and actual specs can be modified upon request. For example, some people may prefer to have only two graphics cards installed into the X99 system, or 32 or 64 GB of memory installed into the Z270 platform.

Pricing

The base price of the 8Pack OrionX is £24,000 ($30,116), but it may increase or decrease depending on exact configuration. The base model does not look like a PC for everyone even despite the price because there are not a lot of applications that can take advantage of three NVIDIA TITAN X graphics cards. Moreover, two systems in one box make sense for those who would like to physically separate their work projects from their gaming or entertainment, but for some reason prefer not to buy two separate PCs (or do not want to work with VMs).

But even if money is not a problem, the minimum lead-time for these systems is 42 working days, which means over two months and OcUK warns that delays may occur. When speaking with 8Pack at the last OCUK event, We were told that these sorts of high-end systems do sell sufficiently to warrant their development costs. Buyers apparently come from all over the world, even if not for the aesthetics but the raw performance. Undoubtedly a self-build is cheaper, but some customers want the support package as well, or financially sufficient to have a system integrator build what they want. Just fire up Minecraft and away you go…

Gallery: 8Pack OrionX

Related Reading:

• OverclockersUK release 8Pack Range of ‘World’s Fastest Systems’
• ASUS ROG GT51 Desktop: Overclocked i7-6700K, GTX 1080 SLI, 64 GB DDR4, $4999
• Acer Announces The Acer Predator 21 X: 21-Inch Curved Screen Gaming Notebook
• MSI Upgrades Its Aegis and Nightblade PCs with Intel’s Kaby Lake CPUs

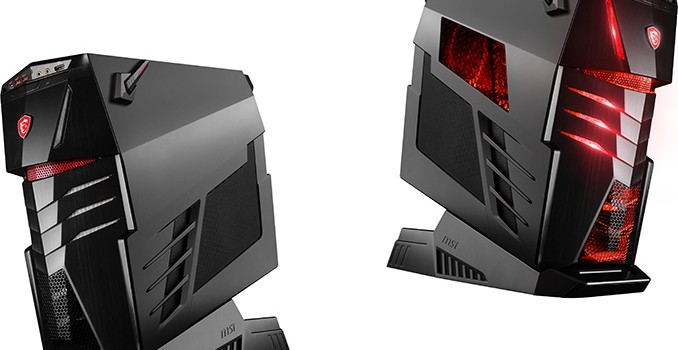

MSI Upgrades Its Aegis and Nightblade PCs with Intel’s Kaby Lake CPUs

MSI this month upgraded its whole lineup of gaming desktops with 7^th generation Intel Core Kaby Lake processors as well as newer motherboards featuring Intel’s 200-series chipsets. The new Aegis and Nightblade systems have the same design and capabilities as their predecessors, but they now offer higher performance because of the CPUs and a better feature set because of the new chipset (PCH).

MSI’s Aegis and Nightblade computers are different in terms of positioning, but they have a lot of similarities when it comes to architecture. Firstly, the PCs use dual-chamber designs to ensure better cooling of their CPU and GPU, and they both simplify upgrades to a certain degree. Secondly, all the systems are based on Mini-ITX motherboards to minimize their footprint and make that dual-chamber design possible in case of miniature Nightblade PCs. Thirdly, gaming computers from MSI come with numerous configurable RGB LEDs to give their owners ability to customize their design according to their taste using MSI’s Mystic Light or Gaming Center software. Finally, all the latest MSI gaming PCs (except the Nightblade MIB) feature front HDMI ports to connect VR headsets.

MSI Nightblade MIB, MSI Nightblade MI3 and MSI Nightblade 3

The Nightblade series from MSI is designed to be as miniature as possible using off-the-shelf components: we are talking about 10-16 liter boxes here with up to 500 W PSUs. Given the relatively small sizes, the new Nightblade PCs use Intel B250-based motherboards, do not support CPU overclocking and can fit in up to three storage devices (in addition to one or two PCIe NVMe SSDs) – being a mix of 2.5-inch and 3.5-inch combinations. When it comes to graphics performance, we are still talking about very high-performance machines with either GeForce GTX 1060 or 1070 GPUs that can be overclocked if needed and there is enough cooling and power headroom.

Gallery: MSI Nightblade 3

The Aegis family  of desktops from MSI consists of the Aegis 3, X3 and Ti 3. These systems are aimed at gamers seeking for higher performance and expandability, which is why two out of three models (the Aegis Ti3 and the Aegis X3) are based on the Intel Z270 PCH, support manual and automatic CPU overclocking (they have a special MSI Game Boost button on their sides to activate the feature), come with 850 W or 600 W PSUs and the company’s Silent Storm cooling system. The Aegis PCs feature a triple-chamber design with the third chamber housing their PSUs.

Gallery: MSI Aegis Ti3

All three Aegis PCs can accommodate up to three SSDs/HDDs in combination, in addition to two or three M.2 SSDs (which can work in RAID) as well as feature Rivet Networks wired or wireless Killer network controllers that can prioritize gaming traffic over traffic generated by other apps. MSI’s Aegis computers use NVIDIA’s GeForce GTX 10 graphics cards, but the top-of-the-range Aegis Ti3 can actually accommodate up to two GeForce GTX 1070/1080 boards in SLI (making it the world’s only Mini-ITX PC with two GPUs) and up to 64 GB of DDR4-2400 memory.

It is interesting to note that instead of using a larger (say, microATX) motherboard with two PCIe 3.0 slots, in the case of the Aegis Ti3 MSI decided to use a Mini-ITX mainboard and then use a riser card with a PCIe switch to bifurcate the only PCIe 3.0 x16 slot between two cards.

The Aegis Ti3 is a pretty large system that uses a 39-liter chassis. Given its configuration (two graphics cards, two SSDs with 1 TB capacity, 3 TB HDD, etc.), it can rival some of the systems made by boutique PC makers.

Gallery: MSI Aegis X3

MSI’s Aegis and Nightblade PCs come with pre-installed microprocessors, video cards, storage and memory components, but actual configurations may vary in different regions. Therefore prices of the systems are going to vary greatly depending on the actual setup and components.
