The Samsung 950 Pro PCIe SSD Review (256GB and 512GB)

Samsung’s new flagship consumer SSD is here to wrap up all the latest technology from Samsung in a small package, with the goal of raising the bar beyond the reach of any SATA drive. The 950 Pro uses Samsung’s latest 128Gb MLC 3D NAND, a PCIe 3.0 x4 interface and the NVMe protocol to deliver peak performance several times faster than the fastest SATA drives.

Western Digital To Acquire SanDisk

Western Digital announced today that they have entered in to an agreement to acquire SanDisk for approximately $19 billion. Western Digital is one of the few remaining hard drive manufacturers, but their only presence in the solid state storage market has been the enterprise SSDs sold by subsidiary HGST. SanDisk’s joint venture with Toshiba on the other hand – one of the four major manufacturers of NAND flash – allows SanDisk to develop a wide range of solid state storage products. This acquisition will give Western Digital some much-needed diversification and potential for growth as hard drives are becoming a niche storage medium.

Without a major SSD-related acquisition, Western Digital would have faced diminishing relevance or the daunting task of carving out a significant piece of the highly competitive SSD market. Over the past several years the solid state storage industry has seen a lot of consolidation, leaving Western Digital with few options for acquisition, of which SanDisk was the largest they could afford.

However even with the acquisition Western Digital won’t enjoy the same status in the SSD market that they have had in hard drives. Toshiba and SanDisk are lagging behind in the transition to 3D NAND, having only just started installing manufacturing equipment in their new fab that is intended to start production in the first quarter of 2016, a year and a half after Samsung’s 3D NAND drives hit the shelves. SanDisk has also not established a large presence in the mainstream SSD controller space, relying on third-party controllers while their competitors have been striving for more vertical integration. SanDisk’s 15nm NAND will probably go down in history as the most advanced planar NAND process but they’re running out of time for it to make a significant impact on the market.

Western Digital expects the deal to be closed in the third quarter of 2016. The acquisition will give their future more security, but they’ll still have to work hard to stay a major player in the long run.

OCZ Announces First SATA Host Managed SSD: Saber 1000 HMS

Today OCZ is introducing the first SATA drive featuring a technology that may be the next big thing for enterprise SSDs. Referred to by OCZ as “Host Managed SSD” technology (HMS) and known elsewhere in the industry by the buzzword “Storage Intelligence”, the general idea is to let the host computer know more about what’s going on inside the SSD and to have more influence over how the SSD controller goes about its business.

Standardization efforts have been underway for more than a year in the committees for SAS, SATA, and NVMe, but OCZ’s implementation is a pre-standard design that may not be compatible with what is eventually ratified. To provide some degree of forwards compatibility, OCZ is releasing an open-source abstraction library to provide what they hope will be a hardware-agnostic interface that can be used with future HMS devices.

OCZ’s HMS implementation provides a vendor-specific extension of the ATA command set. A mode switch is required to access HMS features; when HMS mode is off the drive behaves like a normal non-HMS SATA drive and all background processing like garbage collection are managed autonomously by the SSD. When the HMS features are enabled, the host computer can request that the drive override normal operating procedure and disable all background processes, or to perform them as a high-priority task. If background processing is left disabled for too long, the drive will re-enable the background processing when needed and suffer the immediate performance penalty of the emergency garbage collection.

The intention is to allow better aggregate performance from an array of drives. An example OCZ gives is of an array divided into three pools of drives. At any given time, two pools are actively receiving writes, while the drives in the third pool are focusing solely on the “background” housekeeping operations. The two pools that are in active use defer all the background processing and operate with peak performance and consistency. By cycling the drive pools through the two modes, the intention is that none of the active drives will ever reach the steady-state of having constant background processing to free up space for the incoming writes. This provides a big improvement to performance consistency, and can also provide a minor improvement to overall throughput of the array.

Obviously, the load balancing and coordination required by such a scheme is not part of any traditional RAID setup. OCZ expects early adopters of HMS technology to make use of it from application layer code. HMS does not require any new operating system drivers, and OCZ will be providing tools and reference code to facilitate using HMS. They plan to eventually expand this to a comprehensive SDK, but for now everybody is in the position of having to explore how to best make use of HMS for their specific use case. For some customers, that may mean load balancing several pools of SSDs attached to a single server, while others may find it easier to temporarily offline an entire server for housekeeping.

OCZ has also envisioned that future HMS products may expand the controls from managing background processing to also changing overprovisioning or power limits on the fly, but they have no specific timeline for those features.

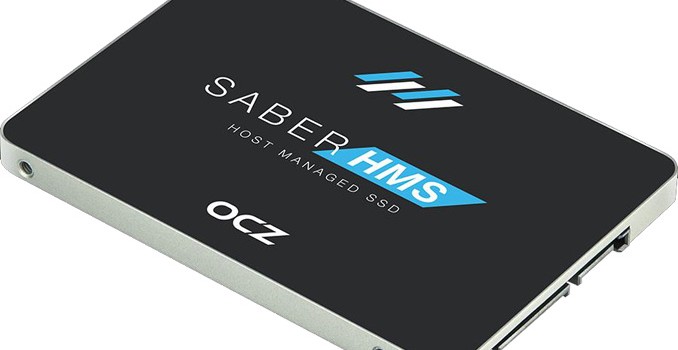

The drive OCZ is introducing with HMS technology is a variant of their existing Saber 1000 enterprise SATA SSD. The Saber 1000 HMS differs only in the SSD controller firmware; otherwise it is still a low-cost drive using the Barefoot 3 controller and is intended primarily for read-oriented workloads. Pricing is the same with or without HMS capability, though the Saber 1000 HMS is only offered in the 480GB and 960GB capacities. The warranty in either case is limited to 5 years, but because the HMS controls can affect write amplification, the Saber HMS write endurance rating is based on the actual Program/Erase cycle count of the drive rather than the total amount of data written to the drive.

As a read-oriented drive with relatively little overprovisioning, the Saber 1000 has a lot to gain from HMS in terms of write performance and consistency, and it may allow the Saber 1000 HMS to compete in areas the Saber 1000 isn’t fast enough for.

In addition to control over the garbage collection process, the Saber 1000 HMS provides a similar set of controls for managing when the controller saves metadata from its RAM to the flash. This is the information the controller uses to keep track of where each piece of data is physically stored and which blocks are free to accept new writes. Every write to the disk adds to the metadata log, so the changes need to be periodically evicted from RAM to flash. This is one of the key data structures that the drive’s power loss protection needs to preserve, so the size of the in-RAM metadata log may also be limited by the drive’s capacitor budget.

To enable software to make effective use of these controls, the Saber 1000 HMS provides an unprecedented view in to the inner workings of the drive. Software can query the drive for the NAND page size, erase block size, number of blocks per bank and number of banks in the drive. The total program and erase counts are reported separately, and information about free blocks is reported as the total across the drive as well as the average, maximum, and minimum per bank. The drive also provides a status summary of whether garbage collection or metadata log dumping are active, and whether they are needed. OCZ’s reference guide provides recommendations for interpreting all of these indicators.

The Saber 1000 HMS will be available in early November for bulk purchases. The technical documentation and reference code should be available online today.
