Transcend Announces SuperMLC: Pseudo-SLC SSDs For Industrial Market

Transcend offers one of the broadest ranges of SSDs and flash memory cards, with products for almost every form factor and even some legacy interfaces like IDE. Part of the variety comes from products intended for industrial use, with features such as extended temperature ratings or the use of SLC NAND for improved write endurance and performance.  However, trends in flash memory technology and the SSD market over the past few years have led to SLC products all but disappearing from the market as MLC-based SSDs have demonstrated sufficient performance and durability for even the most demanding enterprise customers. Many of Transcend’s SLC-based products have now been outclassed by their MLC-based counterparts using newer controllers and reaping the performance benefits of higher capacities and more flash chips.

For these reasons, Transcend has announced that their next generation of industrial-grade SSDs will be taking a new approach to providing high durability. What they are calling SuperMLC will consist of premium-binned MLC flash memory that is operated as SLC flash, with only one bit stored in each flash cell instead of two. We’ve seen this sort of pseudo-SLC operating mode used by many TLC-based SSDs and a few MLC drives to provide a small but fast write cache, but we haven’t previously seen this used for an entire drive.

For the cost of halving usable capacity relative to normal two bit per cell MLC, Transcend claims their SuperMLC can provide four times the sequential write speed and an effective Program/Erase Cycle rating of 30,000. Flash manufacturers are increasingly reluctant to disclose specifics of durability, but based on whole-drive endurance ratings and wear indicators we’ve been able to estimate that even the 3D NAND used in Samsung’s 850 Pro consumer MLC drive is only warranted for 6,000 P/E cycles, and most recent planar NAND MLC is rated for around 3,000 P/E cycles. Selective binning often means that enterprise drives have higher durability, but using the flash as SLC is guaranteed to add even more to its endurance.

By starting with the same MLC flash memory used in mainstream SSDs instead of the niche product that is SLC NAND, it’s likely that Transcend will be able to cut costs significantly as they’re buying from a market with much greater supply and MLC dies that don’t make the cut for their SuperMLC products can still be sold in their consumer-grade products.

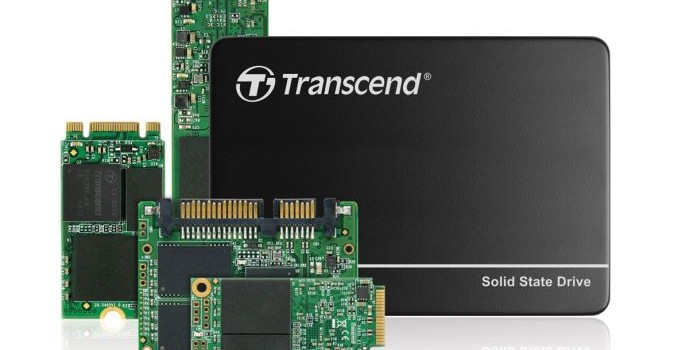

Transcend plans to introduce SuperMLC drives over the course of 2016. The products announced so far are SSD510K (2.5″ SATA), MSA510 (mSATA), HSD510 (half-slim form factor; essentially a 2.5″ drive PCB that’s only half as long as a 2.5″ drive case), and MTS460 and MTS860 will be two sizes of M.2 (presumably also using a SATA interface rather than PCIe).

The Angelbird Wings PX1 M.2 Adapter Review: Do M.2 SSDs Need Heatsinks?

The M.2 form factor has quickly established itself as the most popular choice for PCIe SSDs in the consumer space. The small size easily fits in to most laptop designs, and the ability to provide up to four lanes of PCI Express accommodates even the fastest SSDs. By comparison, SATA Express never caught on and never will due to its two-lane limitation. And the more recent U.2 (formerly SFF-8639) does have traction, but has seen little adoption in the client market.

Meanwhile, although M.2 has its perks it also has its disadvantages, often as a consequence of space. The limited PCB area of M.2 can constrain capacity: Samsung’s single-sided 950 Pro is only available in 256GB or 512GB capacities while the 2.5″ SATA 850 Pro is available in up to 2TB. And for Intel, the controller used in their SSD 750 is outright too large for M.2, as it’s wider than the most common M.2 form factor (22mm by 80mm). Finally and most recently, as drive makers have done more to take advantage of the bandwidth offered by PCIe, a different sort of space limitation has come to the fore: heat.

When testing the Samsung SM951 we found that our heavier sustained I/O tests could trigger thermal throttling that would periodically restrict the drive’s performance. We also had a brief opportunity to run some of our tests on the SM951 using the heatsink from Plextor’s M6e Black Edition. We found that extra cooling made noticeable differences in performance on some of our synthetic benchmarks, but our more realistic AnandTech Storage Bench tests showed little or no change. But other than the quick look at the SM951, we haven’t had the chance to do a thorough comparison of how cooling affects high-performance M.2 drives, until now.

The Crucial BX200 (480GB & 960GB) SSD Review: Crucial’s First TLC NAND SSD

The Crucial BX200 is the successor to the very successful BX100 and is Crucial’s new value-oriented SSD. The BX200 moves to the newer Silicon Motion SM2256 controller and is Crucial’s first TLC drive, using Micron’s 128Gb 16nm TLC NAND. The use of TLC will make it hard for the BX200 to achieve the BX100’s combination of average performance and stellar power consumption, but it does allow for lower cost.
