Micron last week made two announcements regarding its transition to 3D NAND memory. According to the company, the output of 3D NAND at its fabs has surpassed the output of 2D NAND in terms of bits. Meanwhile, the costs of the first-generation 3D NAND …
Western Digital has introduced a new family of Ultrastar SS200 SAS SSDs that wed high-performance with capacities up to 7.68 TB as well as relatively high endurance. The drives are aimed at mixed-use and read-intensive workloads that require not only maximum throughput, but also reliability. To guarantee the latter, the Ultrastar SS200 uses the company’s Guardian technology.
The HGST Ultrastar SS200-series SSDs are designed for datacenters that rely on SAS backplanes, which are used for modern read-intensive and mixed-use workloads that benefit from performance and reliability (e.g., financial transactions, e-commerce, virtualization, database analytics, etc.). The drives come in 2.5”/15 mm form-factor with two SAS 12 Gbps ports and are based on the Guardian platform originally developed by SanDisk. The Guardian technology handles flash management, signal processing, end-to-end data path protection, power-loss protection and so on. Unlike the previous-gen products featuring the Guardian, the Ultrastar SS200 SSDs are based on a proprietary Western Digital controller and firmware, not a third-party chip with a custom firmware, the company told us. The manufacturer claims that the SS200 drives use “commercial-grade” MLC NAND memory, which probably means 128 Gbit ICs made using 15 nm fabrication process.
| HGST Ultrastar SS200 Series Specifications | |||
| Ultrastar SS200 | |||
| Capacities | 400 GB 800 GB 1,600 GB 3,200 GB |
480 GB 960 GB 1,920 GB 3,840 GB 7,680 GB |
|
| Form Factors | 2.5″/15mm | ||
| Interface | dual-port SAS 12 Gbps | ||
| Controller | Proprietary | ||
| NAND | 128 Gb MLC made using 15 nm process tech (?) | ||
| Sequential Read | 1800 MB/s | ||
| Sequential Write | 1000 MB/s | ||
| Random Read (4 KB) IOPS | 250,000 | ||
| Random Write (4 KB) IOPS | 86,000 | 37,000 | |
| Mixed Random Read/Write (max IOPS 70%R/30%W, 4KB) |
154,000 | 90,000 | |
| Write Latency 512 B | 100 ms | ||
| Power | Idle | 3.8 W – 4.3 W | |
| Operating | 9 W – 11 W (configurable) | ||
| Endurance | 3 DWPD | 1 DWPD | |
| Encryption | AES-256 | ||
| Power Loss Protection | Yes | ||
| MTBF | 2.5 million hours | ||
| Warranty | Five years | ||
Since different workloads mean different demands for capacities and endurance, Western Digital plans to offer capacity-optimized versions of the SS200 that can store 480 GB – 7.68 TB of data and rated for one drive write per day (DWPD) for five years as well as endurance- and performance-optimized models rated at 3 DWPD for five years that can store 400 GB – 3.2 TB of data. Power consumption of the Ultrastar SS200 SSDs is configurable and can be as low as 9 W or as high as 11 W.
When it comes to performance, the HGST Ultrastar SS200 supports sequential read speeds of up to 1800 MB/s as well as sequential write speeds of up to 1000 MB/s. Random read performance of the Ultrastar SS200 is up to 250K, whereas random write performance is rated at 86K/37K (performance-/capacity-optimized models).
Samples of the HGST Ultrastar SS200 SAS lineup of SSDs are available to select customers now and Western Digital intends to begin their volume shipments in the first quarter of 2017. The drives will be covered with a five-year warranty and will be rated at 2.5 million-hour MTBF.
Related Reading:
Western Digital has introduced a new family of Ultrastar SS200 SAS SSDs that wed high-performance with capacities up to 7.68 TB as well as relatively high endurance. The drives are aimed at mixed-use and read-intensive workloads that require not only maximum throughput, but also reliability. To guarantee the latter, the Ultrastar SS200 uses the company’s Guardian technology.
The HGST Ultrastar SS200-series SSDs are designed for datacenters that rely on SAS backplanes, which are used for modern read-intensive and mixed-use workloads that benefit from performance and reliability (e.g., financial transactions, e-commerce, virtualization, database analytics, etc.). The drives come in 2.5”/15 mm form-factor with two SAS 12 Gbps ports and are based on the Guardian platform originally developed by SanDisk. The Guardian technology handles flash management, signal processing, end-to-end data path protection, power-loss protection and so on. Unlike the previous-gen products featuring the Guardian, the Ultrastar SS200 SSDs are based on a proprietary Western Digital controller and firmware, not a third-party chip with a custom firmware, the company told us. The manufacturer claims that the SS200 drives use “commercial-grade” MLC NAND memory, which probably means 128 Gbit ICs made using 15 nm fabrication process.
| HGST Ultrastar SS200 Series Specifications | |||
| Ultrastar SS200 | |||
| Capacities | 400 GB 800 GB 1,600 GB 3,200 GB |
480 GB 960 GB 1,920 GB 3,840 GB 7,680 GB |
|
| Form Factors | 2.5″/15mm | ||
| Interface | dual-port SAS 12 Gbps | ||
| Controller | Proprietary | ||
| NAND | 128 Gb MLC made using 15 nm process tech (?) | ||
| Sequential Read | 1800 MB/s | ||
| Sequential Write | 1000 MB/s | ||
| Random Read (4 KB) IOPS | 250,000 | ||
| Random Write (4 KB) IOPS | 86,000 | 37,000 | |
| Mixed Random Read/Write (max IOPS 70%R/30%W, 4KB) |
154,000 | 90,000 | |
| Write Latency 512 B | 100 ms | ||
| Power | Idle | 3.8 W – 4.3 W | |
| Operating | 9 W – 11 W (configurable) | ||
| Endurance | 3 DWPD | 1 DWPD | |
| Encryption | AES-256 | ||
| Power Loss Protection | Yes | ||
| MTBF | 2.5 million hours | ||
| Warranty | Five years | ||
Since different workloads mean different demands for capacities and endurance, Western Digital plans to offer capacity-optimized versions of the SS200 that can store 480 GB – 7.68 TB of data and rated for one drive write per day (DWPD) for five years as well as endurance- and performance-optimized models rated at 3 DWPD for five years that can store 400 GB – 3.2 TB of data. Power consumption of the Ultrastar SS200 SSDs is configurable and can be as low as 9 W or as high as 11 W.
When it comes to performance, the HGST Ultrastar SS200 supports sequential read speeds of up to 1800 MB/s as well as sequential write speeds of up to 1000 MB/s. Random read performance of the Ultrastar SS200 is up to 250K, whereas random write performance is rated at 86K/37K (performance-/capacity-optimized models).
Samples of the HGST Ultrastar SS200 SAS lineup of SSDs are available to select customers now and Western Digital intends to begin their volume shipments in the first quarter of 2017. The drives will be covered with a five-year warranty and will be rated at 2.5 million-hour MTBF.
Related Reading:

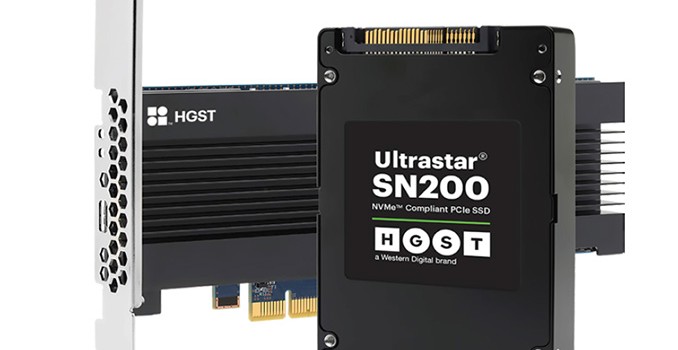

Western Digital this week announced two high-end HGST Ultrastar families of SSDs designed for high-frequency workloads in cloud and hyperscale environments that require instant response time. The new drives will act like application accelerators and will thus offer very high sequential and random performance as well as very low latency.
The manufacturer does not reveal a lot of information about the HGST Ultrastar SN200 family, but we do know that it is based on a proprietary controller that is compliant with the NVMe 1.2 specification, uses PCIe 3.0 interface and supports “advanced ECC” (which is probably a marketing way of saying LDPC). The HGST Ultrastar SN200 family of solid-state accelerators consists of two lineups: the SN260 and the SN200. The Ultrastar SN260 is designed for maximum performance, which is why it uses PCIe 3.0 x8 interface and is set to be available in half-height/half-length add-in card form-factor. By contrast, the Ultrastar SN200 uses a more traditional 2.5”/15 mm form-factor along with dual-port U.2 connector featuring PCIe 3.0 x4 interface (dual-port is needed for high-availability systems).
To appeal to different types of customers and workloads, the SN200 and the SN260 SSDs will come in endurance-optimized and capacity-optimized models with the former offering up to three drive writes per day (DWPD) for five years and the latter offering up to 7.68 TB capacity (see the table for details) as well 1 DWPD for five years. Power consumption and other features of different types of drives are similar: they do not consume more than 25 W under load and they support end-to-end data path protection, secure erase, power-loss protection and so on.
When it comes to performance, the HGST Ultrastar SN260 with 800 GB – 7.68 TB capacity is the absolute champion in Western Digital’s product stack and is also among the fastest high-capacity NVMe PCIe SSDs today (it only pales in comparison with Seagate’s Nytro XP7200, which is a PCIe 3.0 x16 SSD with read speeds speced at 10 GB/s). The SN260 is rated at up to 6.4 GB/s for sequential reads and up to 2.2 GB/s for sequential writes (both capacity and endurance models). The new SSDs can perform up to 1.2 million random read IOPS as well as up to 200K/75K random write IOPS (endurance/capacity models).
The HGST Ultrastar SN200 is considerably slower than the SN260 (as expected) with sequential and random reads, but write performance of the two drive families is similar. The SN200 SSD supports sequential read speeds of up to 3300 MB/s as well as sequential write speeds of up to 2100 MB/s.
| HGST Ultrastar SN200 Series Specifications | |||||
| SN260 | SN200 | ||||
| Capacities | 800 GB 1,600 GB 3,200 GB 6,400 GB |
960 GB 1,920 GB 3,840 GB 7,680 GB |
800 GB 1,600 GB 3,200 GB 6,400 GB |
960 GB 1,920 GB 3,840 GB 7,680 GB |
|
| Form Factors | HHHL add-in card | 2.5″/15mm U.2 | |||
| Interface | PCIe 3.0 x8 (NVMe 1.2) | PCIe 3.0 x4 (NVMe 1.2) or 2×2 U.2 |
|||
| Controller | Proprietary | ||||
| NAND | 128 Gb MLC made using 15 nm process technology (?) | ||||
| Sequential Read | 6100 MB/s | 3300 MB/s | |||
| Sequential Write | 2200 MB/s | 2100 MB/s | |||
| Random Read (4 KB) IOPS | 1,200,000 | 830,000 | |||
| Random Write (4 KB) IOPS | 200,000 | 75,000 | 200,000 | 75,000 | |
| Mixed Random Read/Write (max IOPS 70%R/30%W, 4KB) |
560,000 | 270,000 | 500,000 | 240,000 | |
| Write Latency 512 B | 20 ms | ||||
| Power | Idle | 9 W | |||
| Operating | 25 W | ||||
| Endurance | 3 DWPD | 1 DWPD | 3 DWPD | 1 DWPD | |
| Encryption | AES-256 | ||||
| Power Loss Protection | Yes | ||||
| MTBF | 2 million hours | ||||
| Warranty | Five years | ||||
Western Digital is sampling its HGST Ultrastar SN200 NVMe family of SSDs to select customers and plans to start their commercial shipments in the first quarter of 2017. The drives will be covered with a five-year warranty and will come with two million-hour MTBF rating.
Related Reading:
Western Digital this week announced two high-end HGST Ultrastar families of SSDs designed for high-frequency workloads in cloud and hyperscale environments that require instant response time. The new drives will act like application accelerators and will thus offer very high sequential and random performance as well as very low latency.
The manufacturer does not reveal a lot of information about the HGST Ultrastar SN200 family, but we do know that it is based on a proprietary controller that is compliant with the NVMe 1.2 specification, uses PCIe 3.0 interface and supports “advanced ECC” (which is probably a marketing way of saying LDPC). The HGST Ultrastar SN200 family of solid-state accelerators consists of two lineups: the SN260 and the SN200. The Ultrastar SN260 is designed for maximum performance, which is why it uses PCIe 3.0 x8 interface and is set to be available in half-height/half-length add-in card form-factor. By contrast, the Ultrastar SN200 uses a more traditional 2.5”/15 mm form-factor along with dual-port U.2 connector featuring PCIe 3.0 x4 interface (dual-port is needed for high-availability systems).
To appeal to different types of customers and workloads, the SN200 and the SN260 SSDs will come in endurance-optimized and capacity-optimized models with the former offering up to three drive writes per day (DWPD) for five years and the latter offering up to 7.68 TB capacity (see the table for details) as well 1 DWPD for five years. Power consumption and other features of different types of drives are similar: they do not consume more than 25 W under load and they support end-to-end data path protection, secure erase, power-loss protection and so on.
When it comes to performance, the HGST Ultrastar SN260 with 800 GB – 7.68 TB capacity is the absolute champion in Western Digital’s product stack and is also among the fastest high-capacity NVMe PCIe SSDs today (it only pales in comparison with Seagate’s Nytro XP7200, which is a PCIe 3.0 x16 SSD with read speeds speced at 10 GB/s). The SN260 is rated at up to 6.4 GB/s for sequential reads and up to 2.2 GB/s for sequential writes (both capacity and endurance models). The new SSDs can perform up to 1.2 million random read IOPS as well as up to 200K/75K random write IOPS (endurance/capacity models).
The HGST Ultrastar SN200 is considerably slower than the SN260 (as expected) with sequential and random reads, but write performance of the two drive families is similar. The SN200 SSD supports sequential read speeds of up to 3300 MB/s as well as sequential write speeds of up to 2100 MB/s.
| HGST Ultrastar SN200 Series Specifications | |||||
| SN260 | SN200 | ||||
| Capacities | 800 GB 1,600 GB 3,200 GB 6,400 GB |
960 GB 1,920 GB 3,840 GB 7,680 GB |
800 GB 1,600 GB 3,200 GB 6,400 GB |
960 GB 1,920 GB 3,840 GB 7,680 GB |
|
| Form Factors | HHHL add-in card | 2.5″/15mm U.2 | |||
| Interface | PCIe 3.0 x8 (NVMe 1.2) | PCIe 3.0 x4 (NVMe 1.2) or 2×2 U.2 |
|||
| Controller | Proprietary | ||||
| NAND | 128 Gb MLC made using 15 nm process technology (?) | ||||
| Sequential Read | 6100 MB/s | 3300 MB/s | |||
| Sequential Write | 2200 MB/s | 2100 MB/s | |||
| Random Read (4 KB) IOPS | 1,200,000 | 830,000 | |||
| Random Write (4 KB) IOPS | 200,000 | 75,000 | 200,000 | 75,000 | |
| Mixed Random Read/Write (max IOPS 70%R/30%W, 4KB) |
560,000 | 270,000 | 500,000 | 240,000 | |
| Write Latency 512 B | 20 ms | ||||
| Power | Idle | 9 W | |||
| Operating | 25 W | ||||
| Endurance | 3 DWPD | 1 DWPD | 3 DWPD | 1 DWPD | |
| Encryption | AES-256 | ||||
| Power Loss Protection | Yes | ||||
| MTBF | 2 million hours | ||||
| Warranty | Five years | ||||
Western Digital is sampling its HGST Ultrastar SN200 NVMe family of SSDs to select customers and plans to start their commercial shipments in the first quarter of 2017. The drives will be covered with a five-year warranty and will come with two million-hour MTBF rating.
