Understanding Dual Domain Pixels in the iPhone 6 and iPhone 6 Plus

In the launch announcement, Apple announced that their new display had dual domain pixels, which improved viewing angles. Unfortunately they dropped the subject at this, which make for a lot of room for confusion. Anyone that does a cursory analysis through Google will only find references to this type of display in monitors for medical use or similarly technology used by IBM monitors.

However, dual domain pixels are actually not as complicated as they seem. In fact, this is a display technology I remember seeing with the announcement of LG’s AH-IPS technology back in 2011. For those interested in the technical definition, dual domain pixels refers to the fact that the electrodes in the pixels aren’t all aligned. Instead, they’re skewed when viewed from the perspective of the lines defined by the rectangular edges of the display. Because these subpixels are skewed, it’s possible to compensate for uneven lighting that occurs because each individual subpixel is viewed at a different angle, which causes a change in color and a faster fall-off of contrast.

At any rate, this is easiest to explain with a photos. Above, we see the pixel layout of the iPhone 5. This is the standard rows/columns of pixels, and not really news to anyone that knows how displays work. Let’s look at a dual domain arrangement next.

Anyone that has tried the HTC One (M7) or One X will probably understand the effect of this change as these phones have had this type of skewed subpixel format to get better viewing angles and less color shifting with changes in viewing angles. This can carry some risk though as black backgrounds may have some color shifting towards purple instead of yellow/blue, which can look strange but is quite subtle in my experience. There’s really not too much in the way of disadvantages, so I look forward to seeing how Apple’s new displays do in our tests.

Apple Announces iPhone 6 and iPhone 6 Plus; Available September 19th

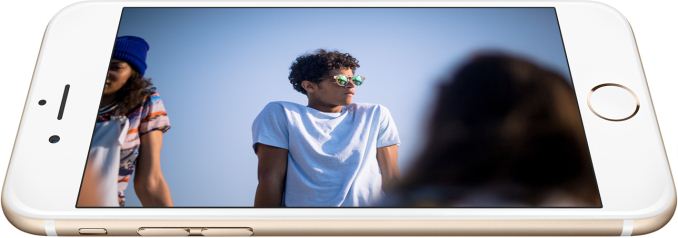

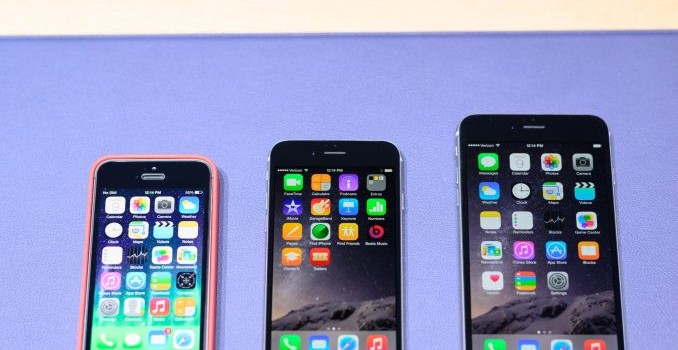

Today, Apple is launching the new iPhone 6 and iPhone 6 Plus. One of first changes is that the new iPhone 6 has a 4.7″ 1334×750 display, and the iPhone 6 Plus has a 5.5″ 1920×1080 (1080p) display. The thickness of of the 4.7″ model is 6.6mm and the 5.5″ model is 7.1mm.

The displays will have higher contrast, better peak brightness, and better viewing angles according to Apple. This suggests that the iPhone display has a chevron shape to its subpixels to improve viewing angles. The glass also has a 2.5D curve similar to the HTC One X and Samsung Galaxy S3 for a smooth feel when swiping off the edge of the phone.

iOS is also adapted to the new larger iPhone 6 Plus’ display by adding landscape views for many native applications that are two pane. In addition, in order to work with the differing resolutions Apple has added a “desktop-class scaler” to avoid incompability issues with applications that aren’t aware of the new displays. This in turn implies that Apple is not doing integer scaling/doubling in all cases, and that we’ll see fractional scaling used. These displays are known as Retina HD. There’s also a one-hand mode for the iPhone 6 Plus in order to deal with the larger display size.

The new A8 powers both of these iPhones, and has 2B transistors compared to 1B the A7. It’s also built on 20nm but it’s unclear whether this is TSMC, Samsung, or both.

Apple also claims 25% higher CPU performance on the A8 and is also emphasizing that this new SoC can do better sustained performance over time compared against other smartphones. The GPU is supposed to be a GX6650.

Image Courtesy Engadget

Apple is also emphasizing that battery life on the iPhone 6 and how it compares to the iPhone 5s. WiFi browsing battery life is slightly increased over the 5s while LTE browsing battery life is unchanged, meanwhile the iPhone 6 Plus improves to 12 hours for both WiFi and LTE.

There’s also a new M8 coprocessor which makes use of a new barometer sensor to measure relative air pressure and compute distance and elevation for better fitness tracking, which is used for the health application in iOS 8.

Apple is also finally introducing MDM9x25 with carrier aggregation and VoLTE. This means that there’s a dual transceiver solution in the iPhone 6 devices. On the same line, Apple is finally adding 802.11ac to its smartphones and has worked on enabling seamless WiFi calling that goes from WiFi to cellular networks.

On the camera side, we see a new 8MP sensor which adds phase detection auto focus for faster autofocus, which is touted to be able to focus at up to 2x speed. There’s also better local tone map and better noise reduction in addition to the PDAF system that was first seen in the Samsung Galaxy S5. Panoramas can now be up to 43MP in total resolution and a better gyroscope reduces stitching errors.

There’s a brand new ISP in the A8 SoC as well, which is likely to be named the H7 ISP if we follow from the A7. Furthermore there’s one feature that the iPhone 6 Plus does have that the iPhone 6 doesn’t have for the camera, which is optical image stabilization (OIS) to reduce shaking. It appears that the entire module is floating instead of just a VCM-based lens stabilization system. There’s also a timelapse feature. The PDAF also helps with continuous AF in video that avoids all of the breathing effects that come with conventional contrast-based focus.

The front facing camera also has a better sensor, f/2.2 aperture, single photo HDR, HDR video, and burst shot on the front facing camera.

Both will launch with iOS 8, which has QuickType that we’ve talked about at the WWDC keynote in addition to Extensibility which allows for TouchID auth in third party apps.

Also new to the iPhone 6 family is Near Field Communication (NFC) hardware, which is being used to power Apple’s new payment system, Apple Pay. The iPhone 6 family utilizes an encrypted secure element (likely on the NFC chip itself) and credit cards are added through Passbook and validation for a purchase can be done using TouchID.

Apple has reassured security concerns by saying that Apple cannot know what is purchased and the cashier cannot see the credit card number or any information to ensure security. Online payment is also handled by Apple Pay which is a one-touch solution using TouchID and one time number from the secure element. Groupon, Uber, Target, Panera, MLB, and Apple store applications are all already supporting this system. Another example cited was OpenTable which allows for one to pay for a dinner check through an app. The system launches in the US in October as an update and will have an API open to all developers to implement in their applications.

There are new silicone and leather cases with gold, silver, and space gray. The iPhone 6 starts at the usual $199 for 16GB, $299 for 64GB and $399 for 128GB. The iPhone 6 Plus comes in the same colors at $299 for 16GB, $399 for 64GB and $499 for 128GB. The iPhone 5s is now $99 on 2 year contrast, and the iPhone 5c is free. The new phone will ship on September 19th and preorders begin on September 12th.

Motorola Launches the New Moto G

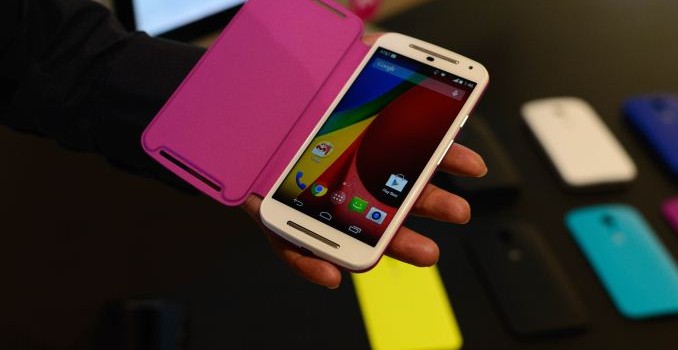

The new Moto G effectively is a minor refresh as the SoC, battery, RAM, WiFi, and most other features. However, the display is now larger at 5″ size but is still a 720p resolution. The camera is now an 8 megapixel sensor, and the Moto G also gets dual front facing stereo speakers.There’s also TV support for Brazil and a microSD card slot. We also see a new flip case designed for the front facing speakers but the design is mostly unchanged.

While this is a mostly incremental release, Motorola revealed some surprising data in comparisons between the Moto G and flagship Android phones. In practice, the light skin on the Moto G makes the phone noticeably faster than some flagship smartphones at some standard smartphone tasks. This is far from a small difference either, as we’re looking at differences as great as .8 seconds, as seen below.

Motorola also emphasized features designed specifically for developing markets, which include Motorola Alert, Motorola Assist, and Dual SIM intelligent calling. The new Moto G is available today for 179.99 USD unlocked on Motorola’s website. It will also be available in India, France, UK, Brazil, Spain, and on Motorola Germany’s website. It will be available in more than a dozen countries and through several carrier partners by the end of the year.
