Hot Chips: Microsoft Xbox One X Scorpio Engine Live Blog (9:30am PT, 4:30pm UTC)

This week it’s the Hot Chips conference in Cupertino. We’re sat nice and early, with the first talk today from Microsoft. John Sell, a Microsoft hardware veteran, is set to talk about the Scorpio Engine, found in the Xbox One X. It’s practically the only talk this week where the slides were not given out early, so I wonder what will be discussed, especially given the large amount of interest in what the Scorpio Engine is. So never mind the eclipse, let’s talk consoles.

Unannounced 8th Generation Core 15W U-Series CPUs Appear on Intel’s Public Price List

More news from Intel this morning, this time published directly on their website. With the upcoming announcement of the 8^th Generation Core next week to which Intel has already posted teasers to the media, it would seem that someone at Intel decided to add processor details and pricing into Intel’s official Price List today.

New to the document are four CPUs, all in the U-series range, which usually indicates TDPs of 15W for non-Iris products. However, the big jump to note will be in the core counts. U-series processors, including the Core i7 parts, have historically been only dual-core with Hyper-Threading, similar to the Core i5 parts (with the Core i7 being better for voltage/frequency curves and overall performance). The Price List shows that both the new Core i7-8000 and Core i5-8000 parts will move up to four cores, and both will feature Hyper-Threading, giving a total of eight threads.

The Price List also states their L3 cache sizes, which is consistent with previous Core i7/i5 positioning. The base frequencies are to note, which are lower than previous generations. Other information shows the pricing is about the same, and the that these are on 14nm. It doesn’t state which 14nm process these parts are on, but it confirms that 10nm isn’t ready as of today to go into the list. The list also doesn’t state the CPUs’ turbo frequencies.

Click to Zoom

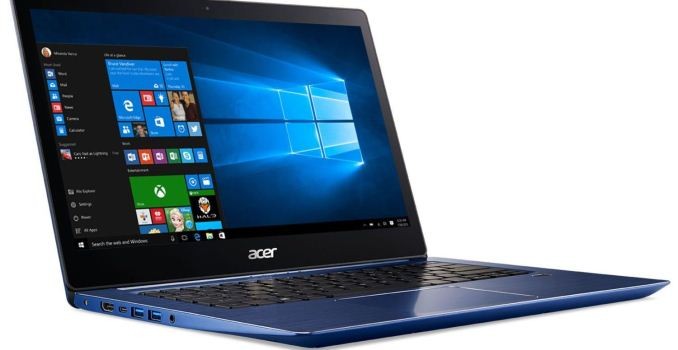

One thing that might have users disappointed is that there is no update on any desktop parts in the price list. The list has the new U-series CPUs as having an official price from August 21st, which would also follow some of the laptop designs that have been leaked by retailers featuring these new parts. The image at the top is of the Acer Swift 3 SF314-52G-55XD, which is one of those devices.

Update: 8/18, 2pm ET

HP seems to have published information about its new HP Envy 13 laptop, with additional information on turbo speeds for the i5-8250U and i7-8550U.

Related Reading

• Intel to Announce 8th Generation Core Processors on August 21st
• Coffee Lake Not Supported by Intel’s 200-Series Motherboards
• Intel Officially Reveals Post-8th Generation Core Architecture Code Name: Ice Lake, Built on 10nm+

Intel Officially Reveals Post-8th Generation Core Architecture Code Name: Ice Lake, Built on 10nm+

In an unusual move for Intel, the chip giant has ever so slightly taken the wraps off of one of their future generation Core architectures. Basic information on the Ice Lake architecture has been published over on Intel’s codename decoder, officially confirming for the first time the existence of the architecture and that it will be made on Intel’s 10nm+ process.

This is an unexpected development as the company has yet to formally detail (let alone launch) the first 10nm Core architecture –  Cannon Lake – and it’s rare these days for Intel to talk more than a generation ahead in CPU architectures. Equally as interesting is the fact that Intel is calling Ice Lake the successor to their upcoming 8th generation Coffee Lake processors, which codename bingo aside, throws some confusion on where the 14nm Coffee Lake and 10nm Cannon Lake will eventually stand.

As a refresher, the last few generations of Core have been Sandy Bridge, Ivy Bridge, Broadwell, Haswell, Skylake, with Kaby Lake being the latest and was recently released at the top of the year. Kaby Lake is Intel’s third Core product produced using a 14nm lithography process, specifically the second-generation ’14 PLUS’ (or 14+) version of Intel’s 14nm process.

Meanwhile when it comes to future products, back at CES Intel briefly showed a device based on post-Kaby Lake designs, called Cannon Lake and based on their 10nm process. Since then Intel has also confirmed that the 8^th Generation of processors for desktops, called Coffee Lake, will be announced on August 21^st (and we recently received promotional material to that effect). Ice Lake then, seems poised to follow both Coffee Lake and Cannon Lake, succeeding both architectures with a single architecture based on 10nm+.

Working purely on lithographic nomenclature, Intel has three processes on 14nm: 14, 14+, and 14++. As shown to everyone at Intel’s Technology Manufacturing Day a couple of months ago, these will be followed by a trio of 10nm processes: 10nm, 10nm+ (10+), and 10++,

On the desktop, Core processors will go from 14 to 14+ to 14++, such that we move from Skylake to Kaby Lake to Coffee Lake. On the Laptop side, this goes from 14 to 14+ to 14++/10, such that we move from Skylake to Kaby Lake to Coffee Lake like the desktops, but also that at some time during the Coffee Lake generation, Cannon Lake will also be launched for laptops. The next node for both after this is 10+, which will be helmed by the Ice Lake architecture.

The way that the desktop and laptop markets will be diverging then converging is confusing a lot of people. Why is the laptop market splitting between 14++ and 10, and why is the desktop market not going to 10nm but straight to 10+? What lies beyond is a miasma of guess work, leaked slides, and guessing Intel’s strategy, but I believe the answer lies in Intel’s manufacturing technologies and the ability to move to newer lithographic nodes.

(We should interject here that the naming of a lithographic node has slowly lost its relevance between the features of the process and the actual transistor density and performance, such that TSMC’s improved 16FF+ is called 12FFN, but relies on similar transistor sizes with enhanced attributes. But 12 is a smaller number than 14, which is the marketing angle kicking in. By all accounts, Intel has typically been considered the more accurate foundry when it comes to numerical lithographic naming of the process, which others consider is to their detriment.)

Intel originally predicted that they would move to 10nm almost a year ago, at the end of 2016 and 2 years after the launch of their 14nm process. But the challenge in managing the technology required to advance to their version of 10nm has been fraught with difficulty. In all cases it can depend on external equipment, fine tuning a process, or getting acceptable yields – while one manufacturer might be satisfied with an 80% yield, another might consider that a failure. Being able to obtain high yields (ramp up) will also be a function of die size, and so the newest nodes are typically launched with smaller mobile parts in mind first, as the yields for smaller parts are better than larger parts at the same defect rate.

Simply put, the first generation of 10nm requires small processors to ensure high yields. Intel seems to be putting the smaller die sizes (i.e. anything under 15W for a laptop) into the 10nm Cannon Lake bucket, while the larger 35W+ chips will be on 14++ Coffee Lake, a tried and tested sub-node for larger CPUs. While the desktop sits on 14++ for a bit longer, it gives time for Intel to further develop their 10nm fabrication abilities, leading to their 10+ process for larger chips by working their other large chip segments (FPGA, MIC) first.

From a manufacturing standpoint, Intel has been using multiple patterning techniques in its 14nm processes, and the industry is looking to when the transition to EUV will take place. Anton has some great writeups of the state of EUV and how different companies are transitioning to smaller nodes – they are well worth a read.

• EUV Lithography Makes Good Progress, Still Not Ready for Prime Time
• Samsung and TSMC Roadmaps: 8 and 6 nm Added, Looking at 22ULP and 12FFC
• GlobalFoundries Updates Roadmap: 7 nm in 2H 2018, EUV Sooner Than Later?

The crux of the matter is that EUV would shorten time to market and arguably make the process easier (if only more expensive), and several fab companies are waiting for Intel to jump onto it first. With EUV not ready, Intel has had to invest into deeper multi-patterning techniques, which raise costs, decrease yields, and increase wafer process times considerably.

All of which leads to a miasma of increased delays, much to the potential chagrin of investors but also customers who had banked on the power improvements that a typical new lithography node brings. Intel is still keeping spirits high, by producing numbers that would suggest that their methodology is still in tune with Moore’s Law, even if the products seem to be further strung out. Some analysts concur with Intel’s statements, while others see it as hand-waving until 10/10+ hits the market. Intel would also point out that it is developing other technologies such as Embedded Multi-Die Interconnect Bridges (EMIB) to assist in equipping chip with high-speed fabric or glue-logic.

Given its position as a post-8th gen architecture, Ice Lake is likely to hit sometime in 2018, perhaps 2019, depending on Intel’s rate of progress with larger chips and the 10+ process. Intel’s other market segments, such as FPGAs (Altera), Xeon Phi (MIC) and custom foundry partners, are also in the mix to get into some 10nm action.

(Note that Intel’s next generation of Xeon Scalable Processors is called Cascade Lake, a 2018 refresh of the Skylake generation launched this year.)

Gallery: Intel Manufacturing Tech Day
